Description

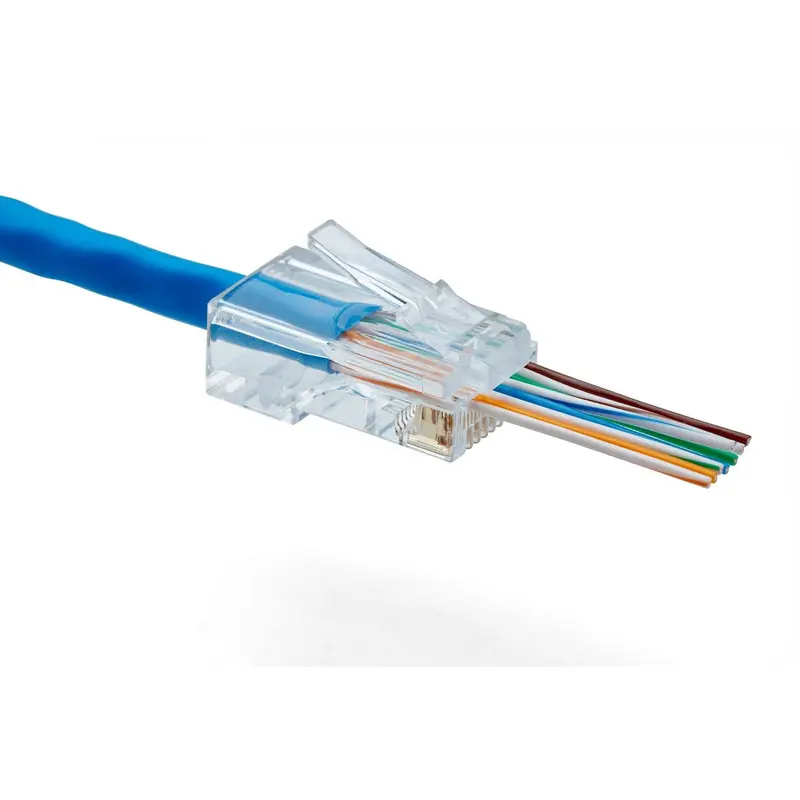

Pass Through Design
- No more load bars means less waste and frustration! The ability to see the conductors come through the front of the plug allows you to verify the correct TIA 568A or 568B color sequence which minimizes bad terminations.
Maximum Performance
- Staggered conductor design minimizes NEXT/FEXT. Ensuring the best cable to plug combination, pass through plugs allow a push-pull method to seat the cable jacket as far into the plug as possible.

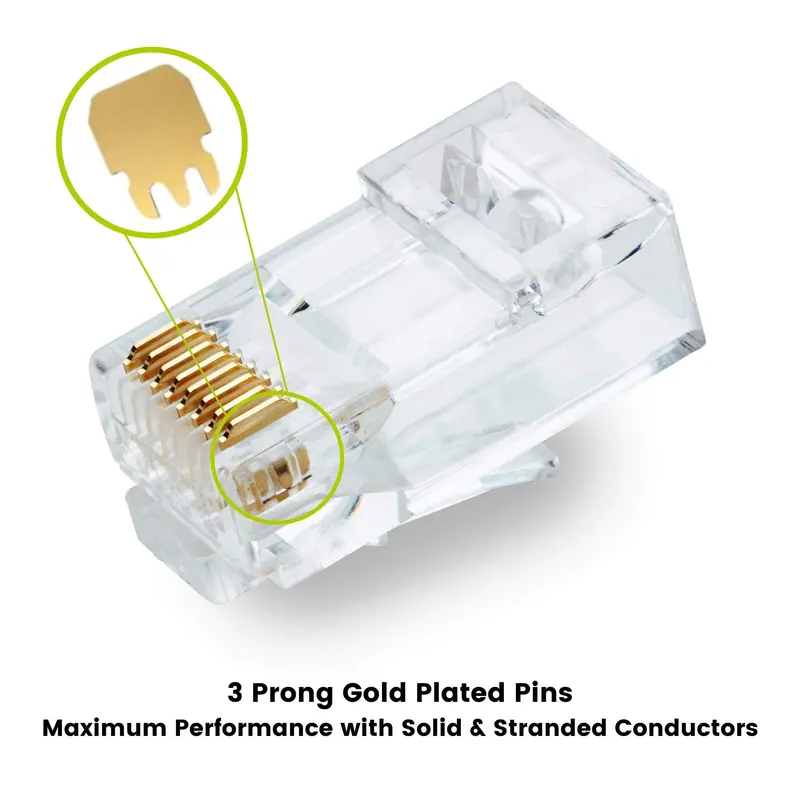

- Triple prong gold plated contacts.
- Supports Power over Ethernet: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 100W.
Versatile
- Works with 23AWG stranded or solid conductors.
- Suitable for cable jacket diameters up to ∅7.30mm and conductor insulation diameters from ∅1.05- 1.15mm.
- Terminate with our All-In-One Crimp and Termination Tool.
Quality Guaranteed
- ANSI/TIA 568 2.D Certified and Validated with trueCABLE U/UTP Ethernet cable. ETL, UL, SGS (RoHS REACH / SVHC) Verified and Tested. FCC compliant.

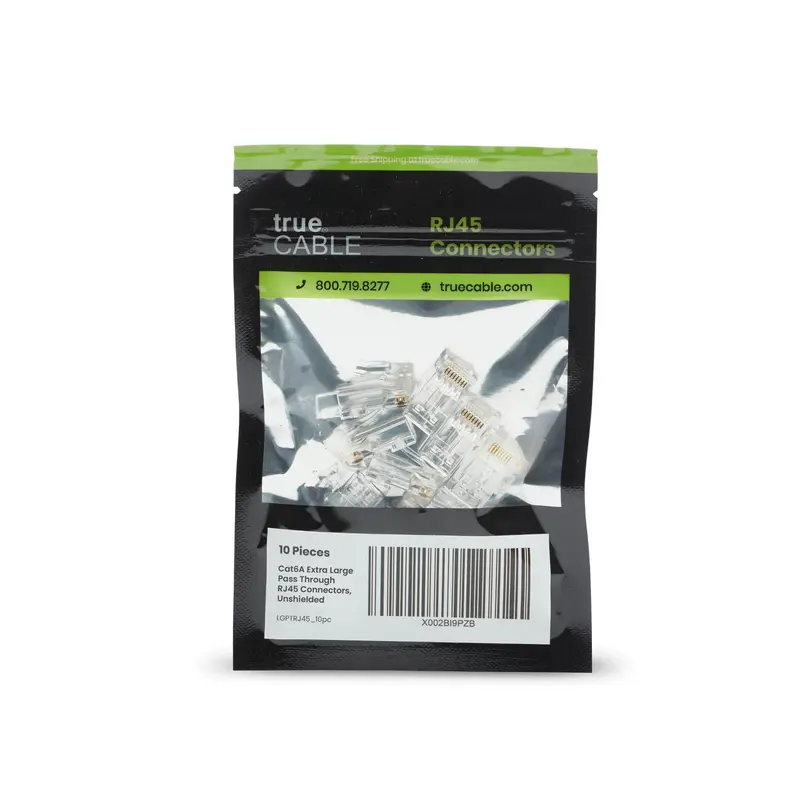

Resealable Bag
- Our transparent gold plated RJ45 plugs are sure to make your install hassle free.
