LC to LC APC Simplex OS2 Single-Mode Patch Cord | OFNR Rated

Description

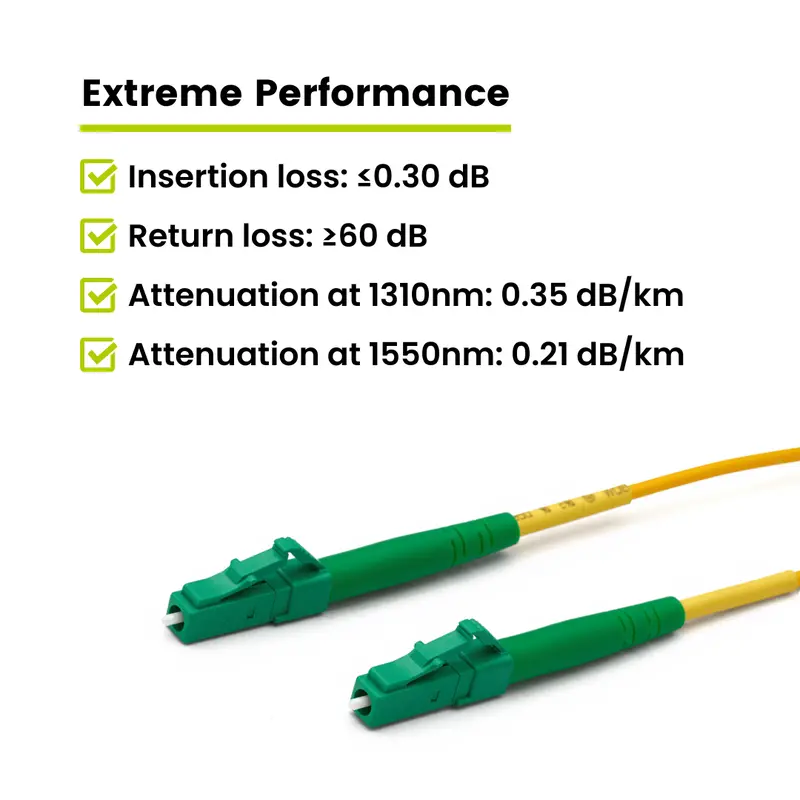

EXTREME PERFORMANCE

• G657.A1 compliant bend insensitive SMF 1310/1550nm operating wavelength for up to 1GB/10GB/40GB/100GB or higher speeds with various lengths depending on the transceiver type.
• APC or “Angled Physical Contact” polish on the fiber optic connector ends.

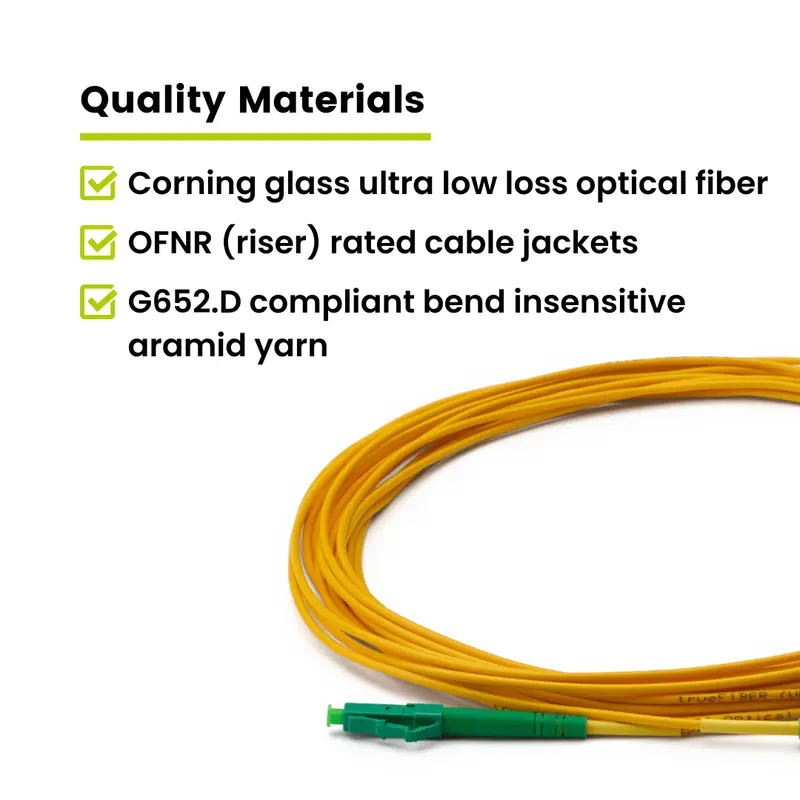

• Corning® ultra low loss glass, ultra optical fiber core and cladding.

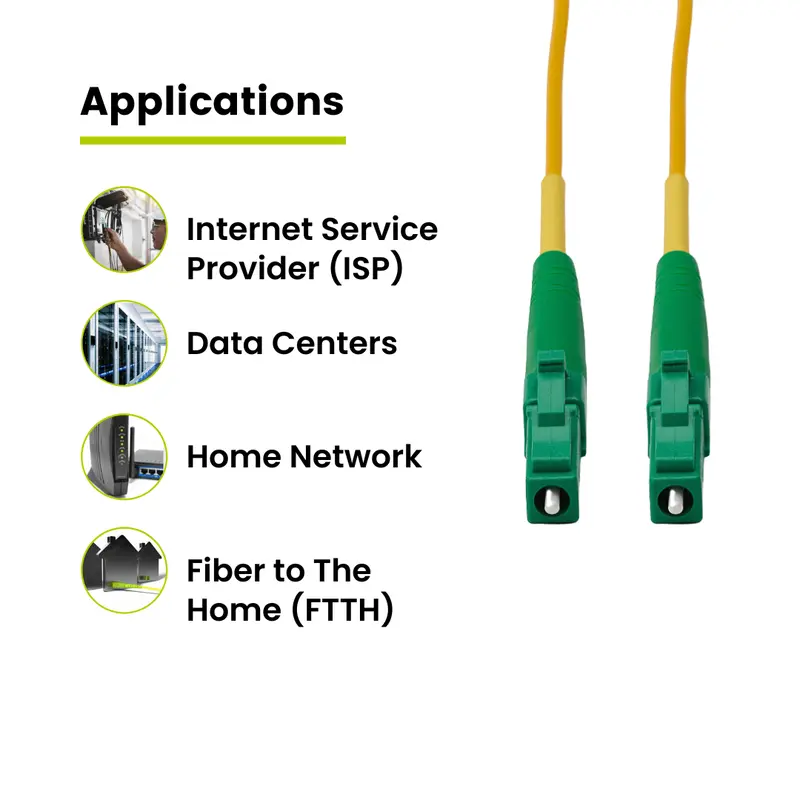

• Fiber to the Home (FTTH), Data Center & Internet Service Provider applications.
• Quality Tested with a Fluke Versiv™ CableAnalyzer.

BEND INSENSITIVE

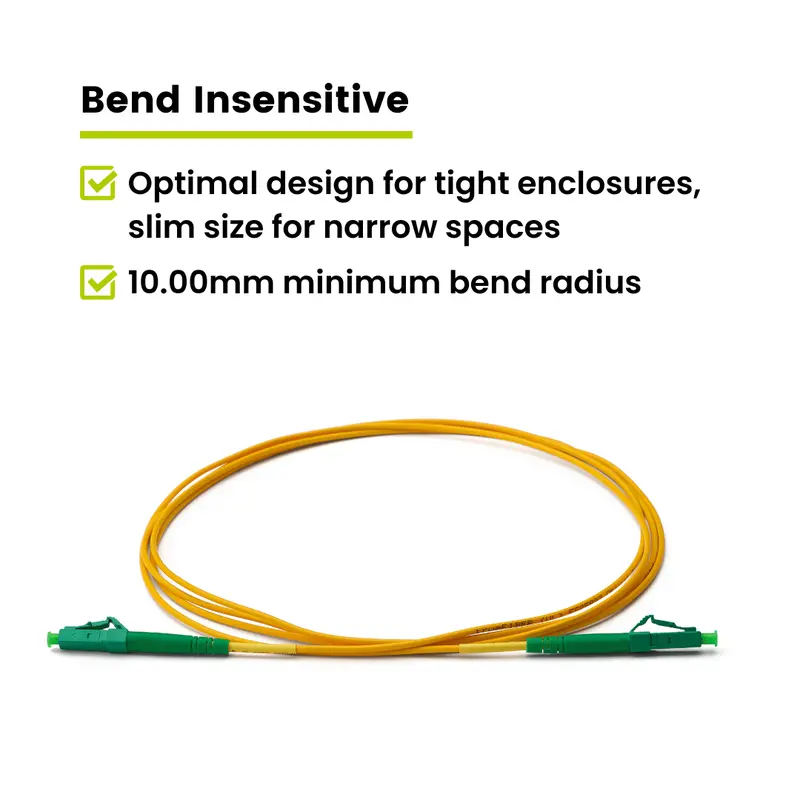

• G657.A1 compliant bend insensitive aramid yarn encased tight buffer cable construction singlemode OS2 cable has a 10.00mm minimum bend radius for tight enclosures and sharp turns.
• 2.0mm OD (overall diameter) cable jacket supports high density applications.

HIGH QUALITY LC CERAMIC FERRULES

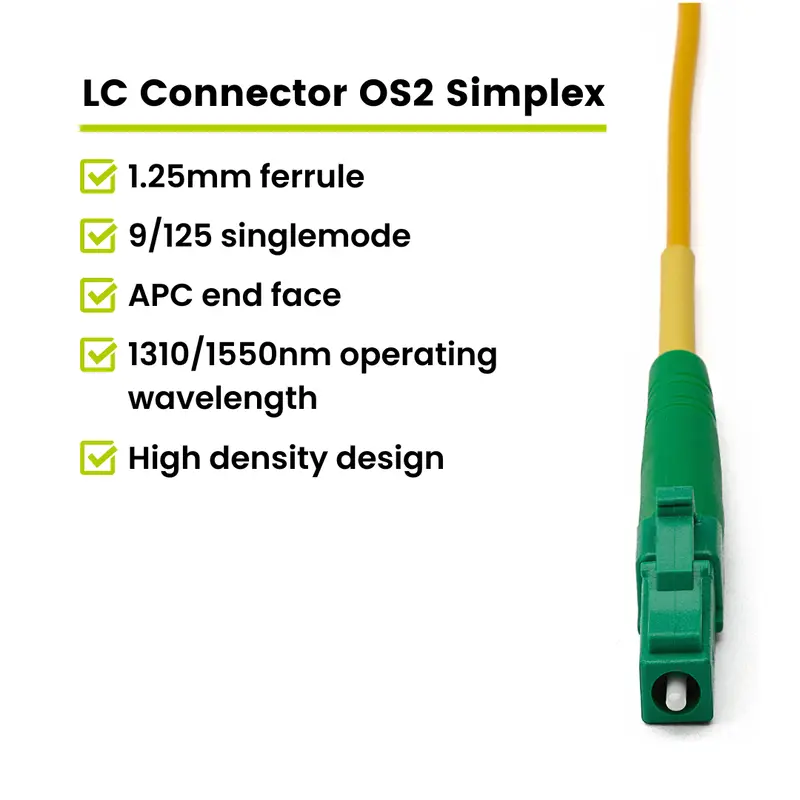

• 1.25mm superior grade LC zirconia ceramic ferrules ensure precision alignment and very low optical loss with an 8 degree APC end-face

FOR USE INDOORS

• OFNR (Riser) rated cable jackets will not promote the spread of flame. Suitable for use in non plenum interior spaces.

✓ CERTIFIED by trueCABLE

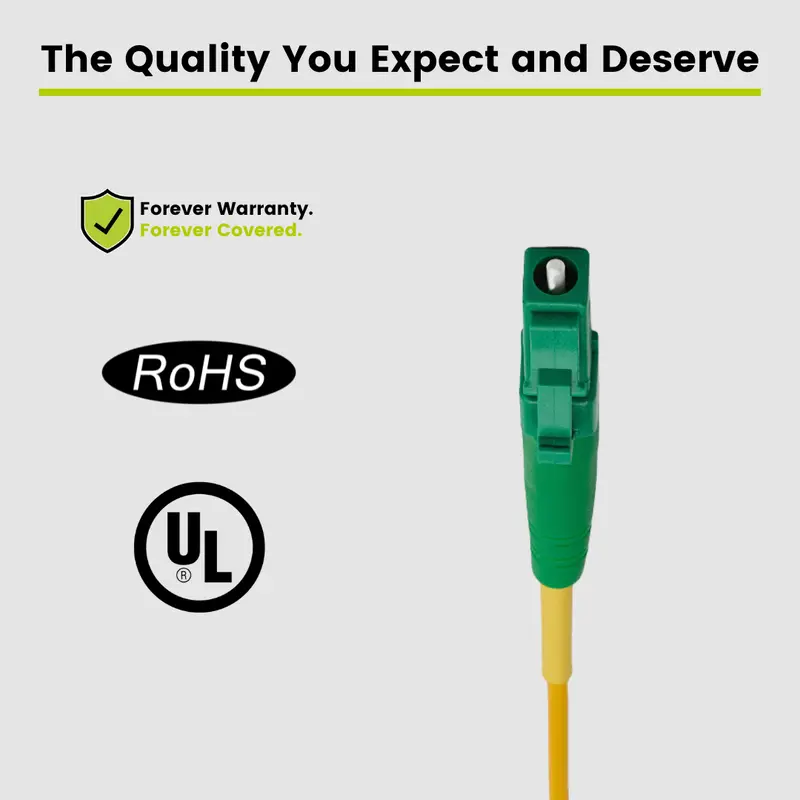

• Our fiber optic cables have been performance tested with a Fluke Versiv CertiFiber Pro CableAnalyzer and are in compliance with ANSI/TIA 568.3-E standards. Further, our single mode fiber patch cables have been end face Certified to IEC 61300-3-35 ED.2 SM. UL Listed. Backed by our FOREVER WARRANTY.
