Description
EXTREME PERFORMANCE
- G657.A1 compliant bend insensitive SMF 1310/1550nm operating wavelength for up to 1GB/10GB/40GB/100GB or higher speeds with various lengths depending on the transceiver type.
- APC or “Angled Physical Contact” polish on one fiber optic connector end.
- Corning® ultra low loss glass, ultra optical fiber core and cladding.
- Fiber to the Home (FTTH), Data Center & Internet Service Provider applications.
- Quality Tested with a Fluke Versiv™ CableAnalyzer.
- Mechanical and Fusion Splice ready

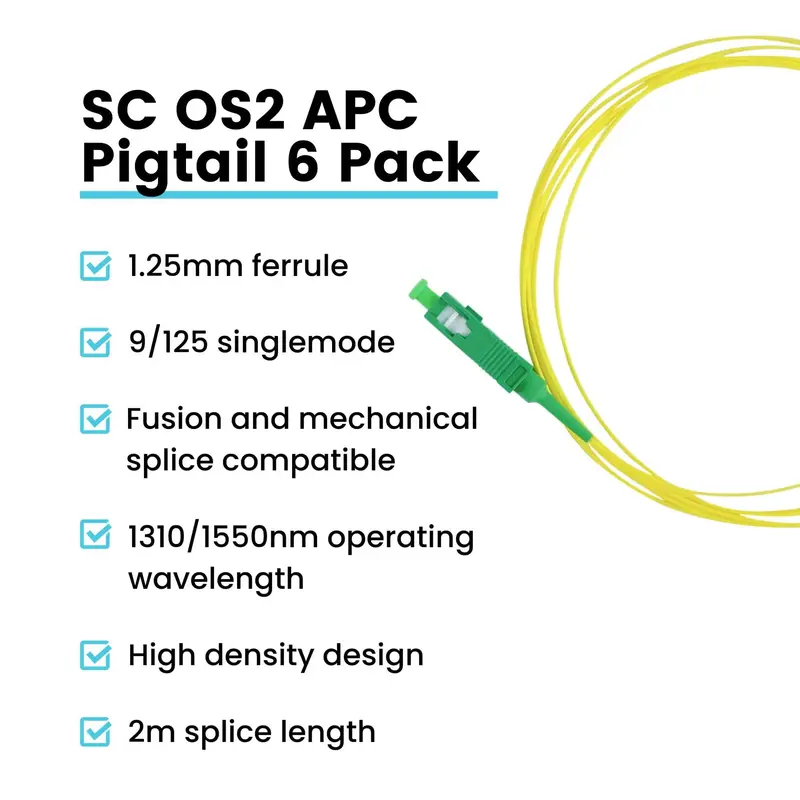

- Low Loss Simplex SC APC Pigtail
BEND INSENSITIVE
- G657.A1 compliant bend insensitive aramid yarn encased tight buffer cable construction singlemode OS2 cable has a 10.00mm minimum bend radius for tight enclosures and sharp turns.
- 0.9mm OD (overall diameter) tight buffer cable jacket supports high density applications.
HIGH QUALITY SC CERAMIC FERRULES
- 2.50mm superior grade SC zirconia ceramic ferrules ensure precision alignment and very low optical loss with an 8 degree APC endface.
FOR USE INDOORS
- LSZH (Low Smoke Zero Halogen) rated cable jackets will not promote the spread of flame. Suitable for use in non plenum interior spaces.
✓ CERTIFIED by trueCABLE
- Our fiber optic cables have been performance tested with a Fluke Versiv CertiFiber Pro CableAnalyzer and are in compliance with ANSI/TIA 568.3-E standards. Further, our single mode fiber patch cables have been end face Certified to IEC 61300-3-35 ED.2 SM. UL Listed. Backed by our FOREVER WARRANTY.
