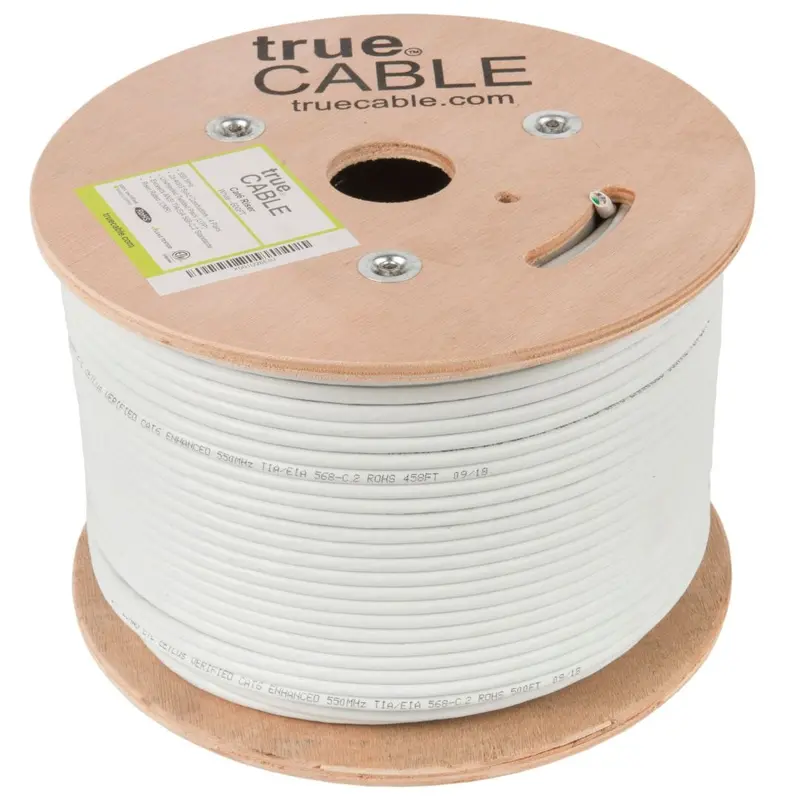

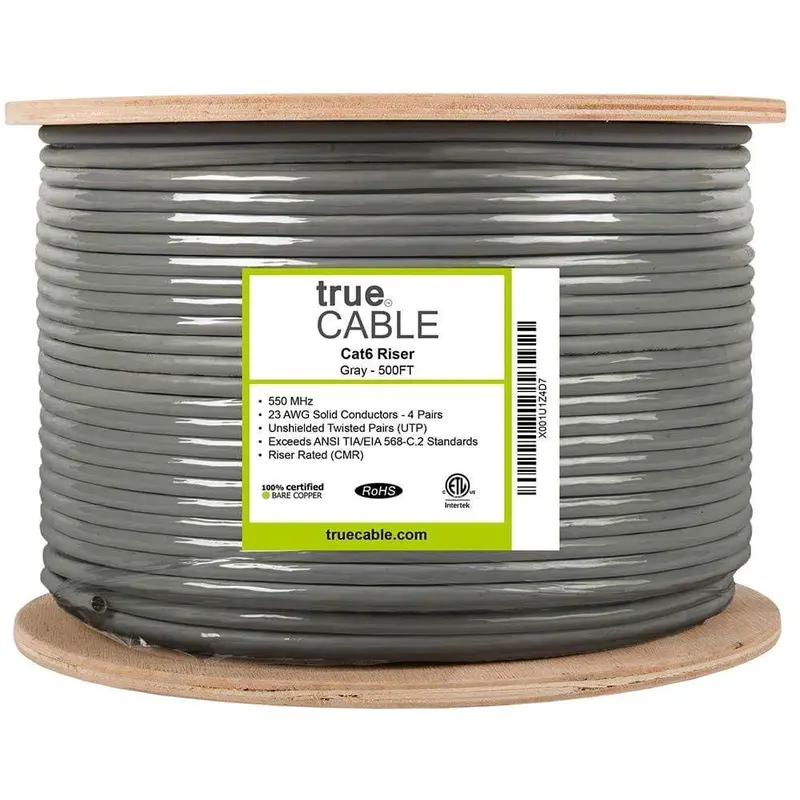

Unshielded Cat6 Riser-Rated Ethernet Cable – CMR Compliance

Description

Riser Rated Ethernet Cable

• The CMR jacket is for use in between floors, in wall, and non-plenum spaces. Helps prevent fires from spreading floor to floor in vertical installations with mild flame retardance.

Optimum Performance

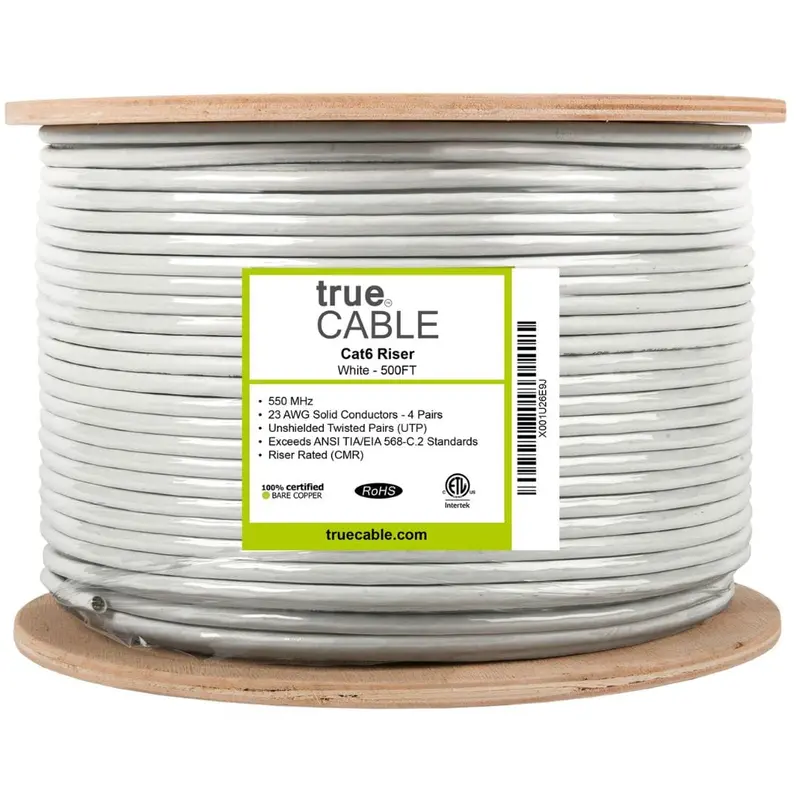

• Suitable for 1 and 5 Gigabit speed up to 328 feet and 10 Gigabit speed up to 165ft depending on the installation environment.
• Bandwidth tested up to 550 MHz

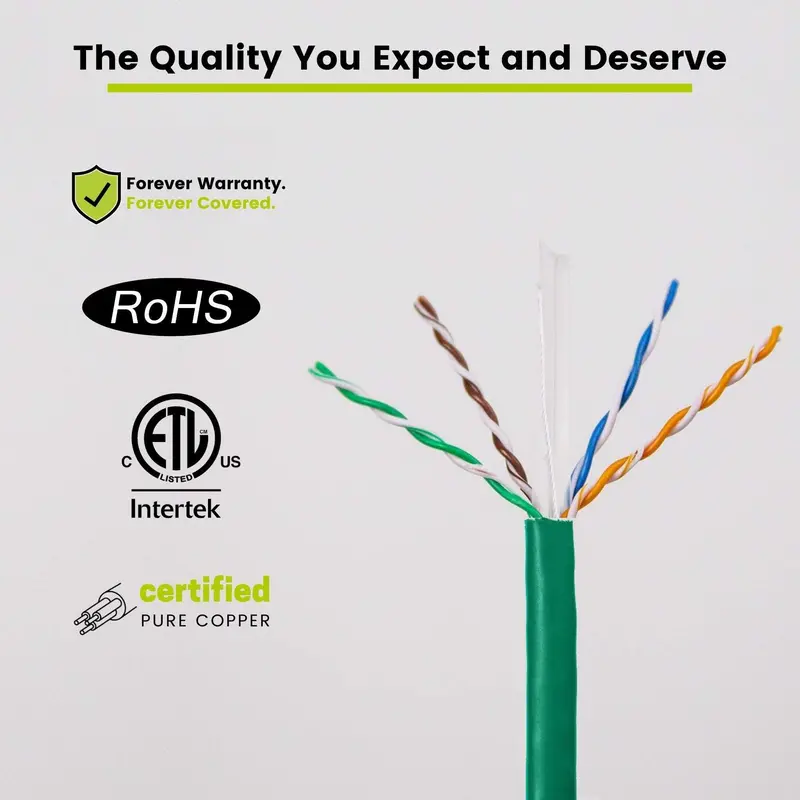

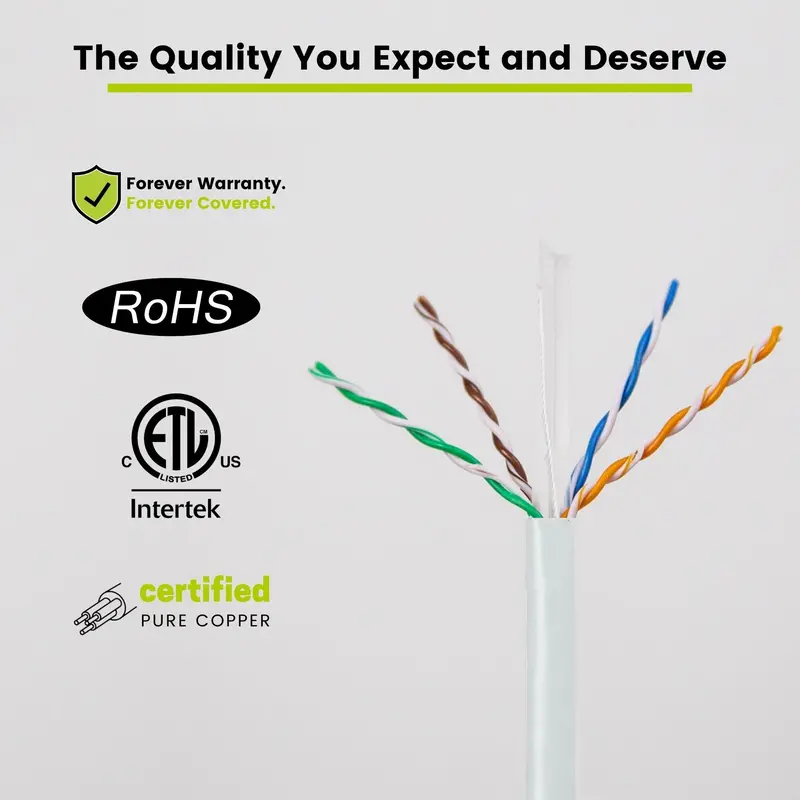

• Unshielded twisted pairs – U/UTP
• Supports Power over Ethernet: PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) 4PPoE up to 100W.

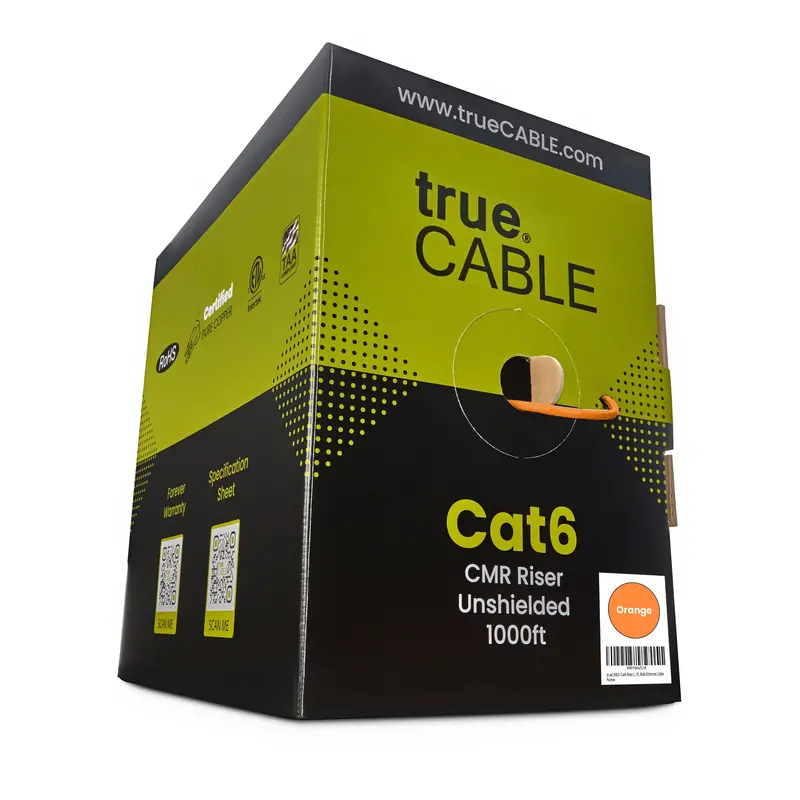

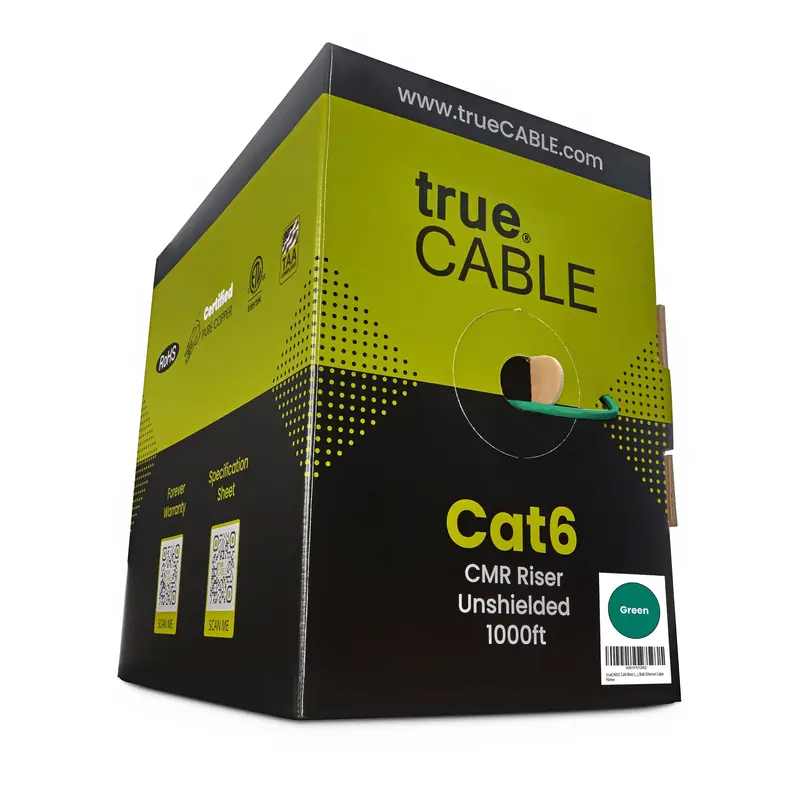

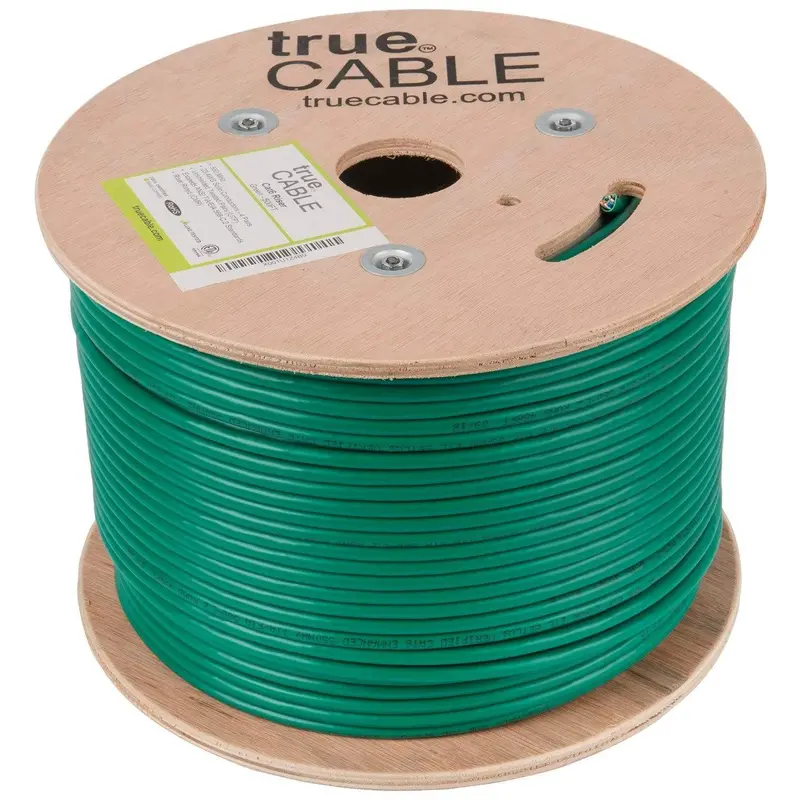

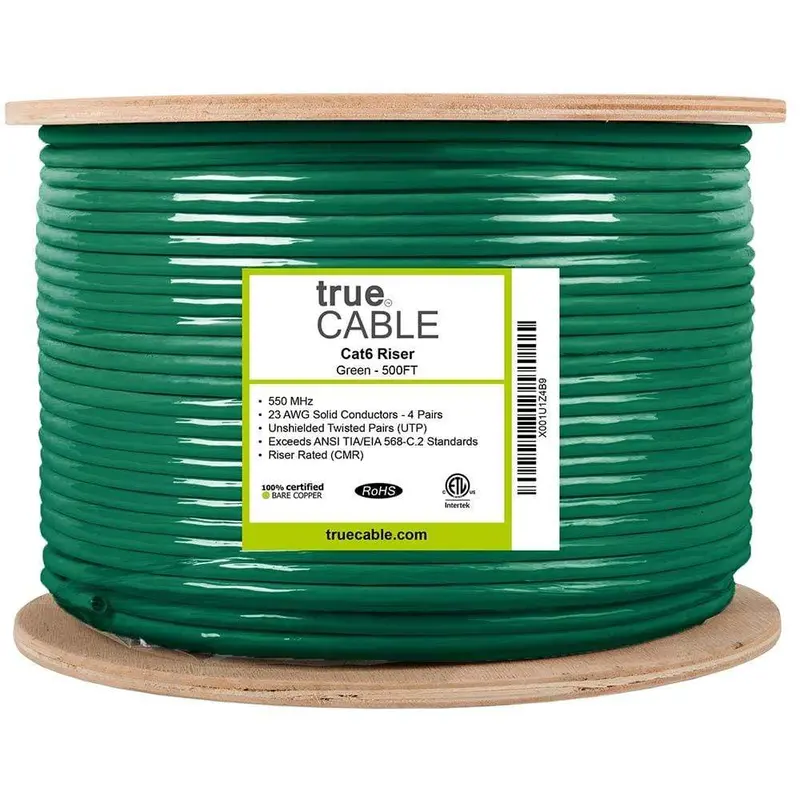

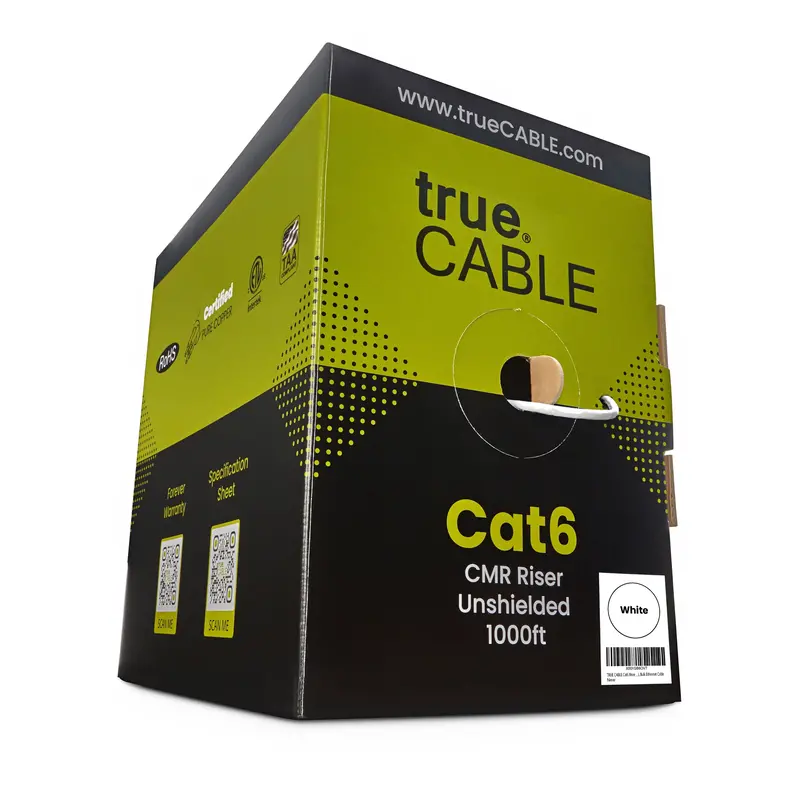

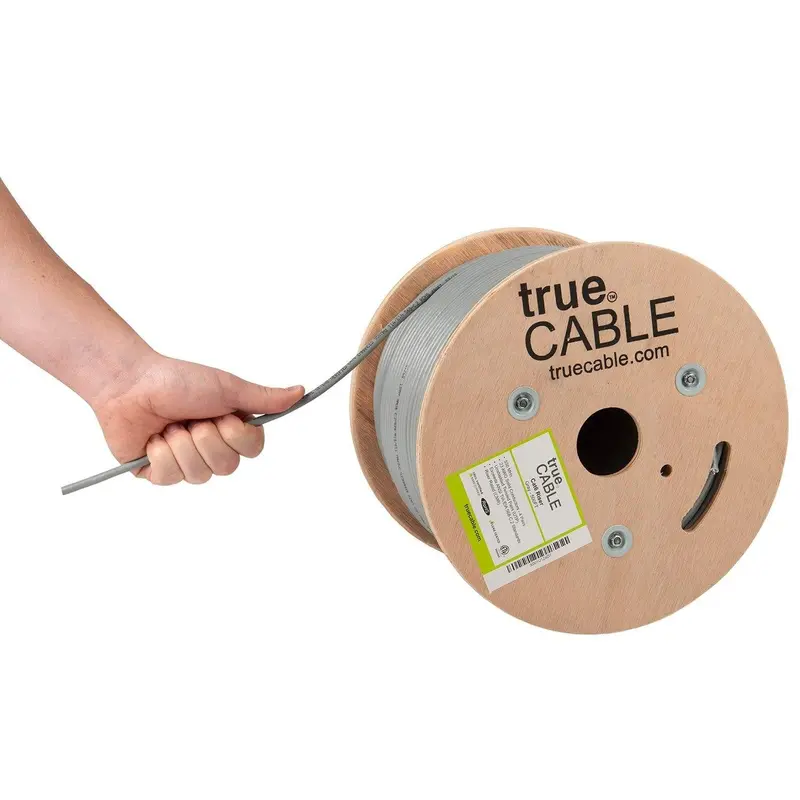

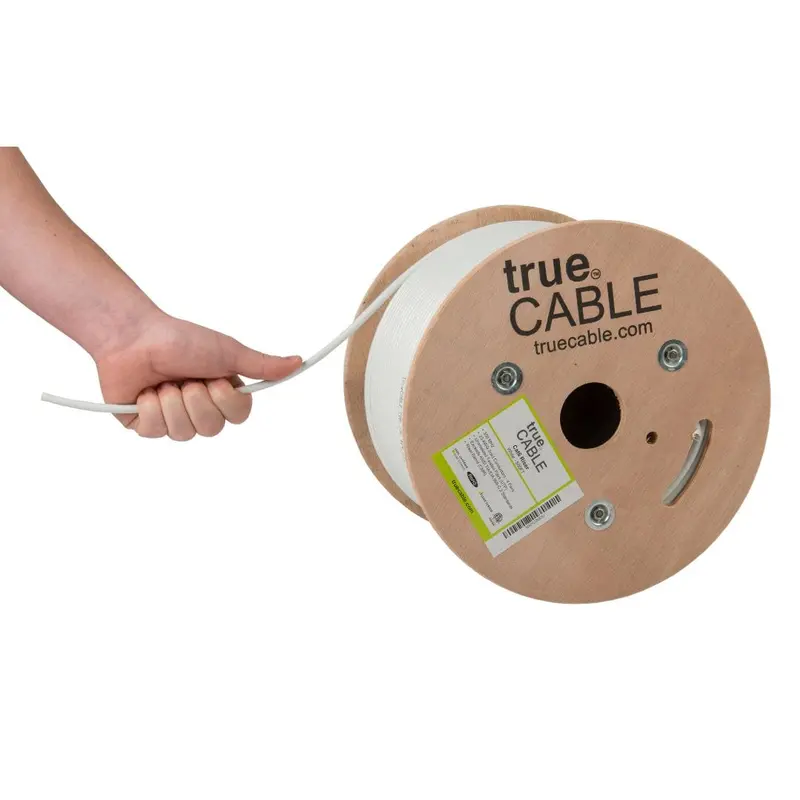

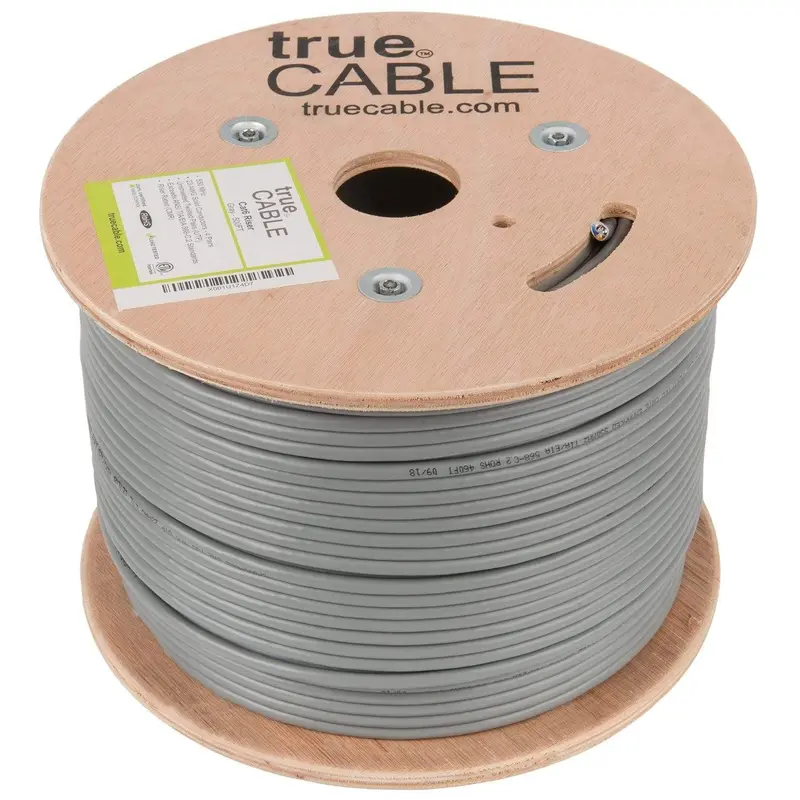

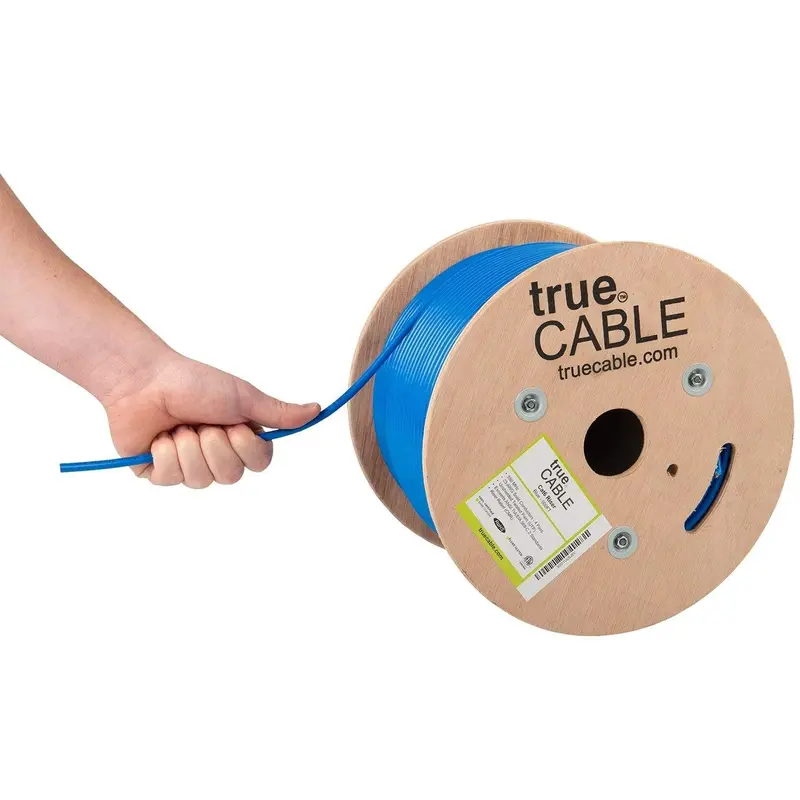

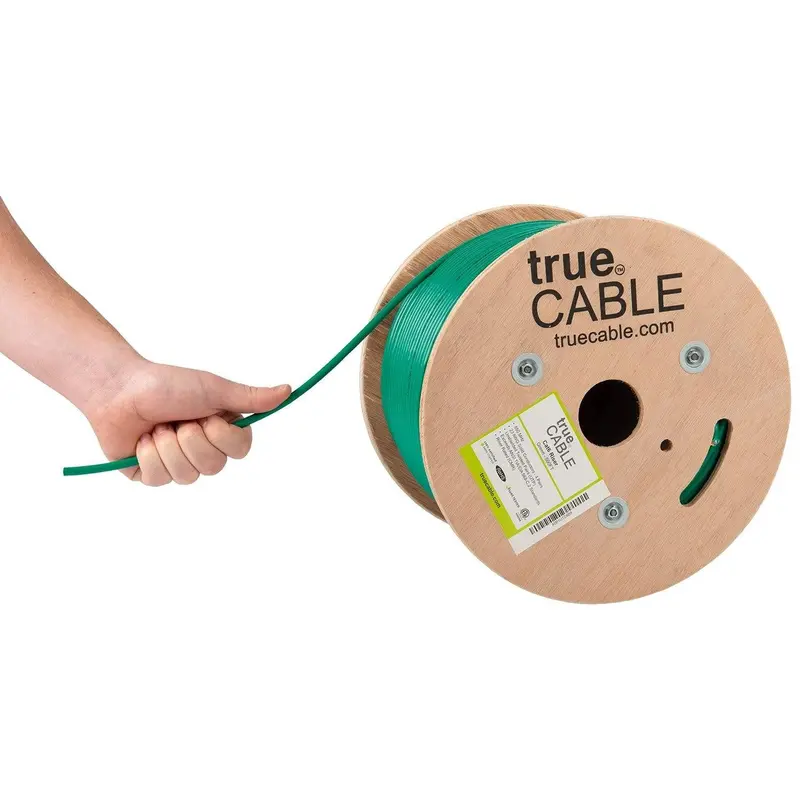

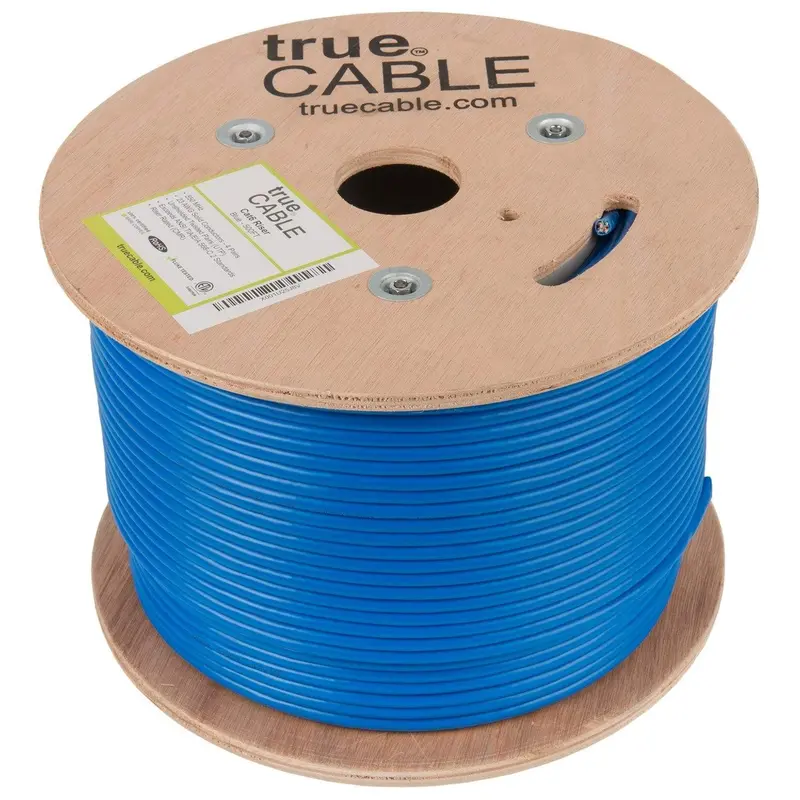

• Sequential footage markings every 2 feet improve efficiency and easily allow you to track how much cable is left in the EZ Pullbox or reel.
• Internal spline adds strength, fights against kinks, and further separates pairs for a cleaner signal.

Compatibility Counts

• Terminate with shielded or unshielded Cat6 RJ45 connectors compatible with 23AWG solid conductors with an insulated conductor diameter of 0.96mm and an overall cable jacket diameter of 5.90mm.

Pure Solid Bare Copper Conductors

• Complies with UL, ANSI/TIA, and U.S. product safety standards.
• Bare copper is superior conductor material for data transmission and PoE use.
• The only industry and governmental approved type of conductor for use in Ethernet networks.

✓ CERTIFIED by trueCABLE

• Our data cables have been tested with a Fluke DSX-8000 Versiv CableAnalyzer and are in compliance with ANSI/TIA 568.2-D standards, RoHS-3 compliant, and cETLus certified.
